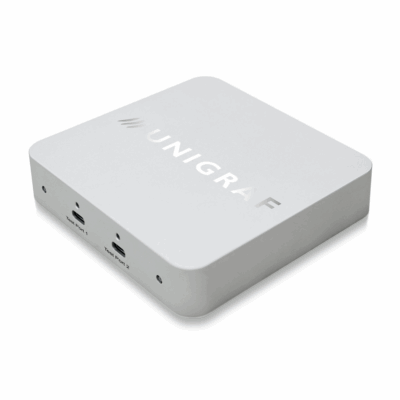

Unigraf's UTC-274 Tester is an automation tool for simultaneous testing of two USB-C devices suitable for production line and R&D environments. It provides a reliable and versatile solution for testing both the electrical and functional aspects of connectors on laptops, smartphones, tablets and chargers. The device supports testing of USB 2.0 and USB 3.2 communications, as well as checking compatibility with USB4 mode, offering complete coverage of the latest generations of USB-C products. These capabilities make it an essential tool for both production and development testing.
Show full description UTC-274 USB-C TESTER
Hide full description UTC-274 USB-C TESTER
Main features
-
Test Connections
USB Type-C x 2 (Dual Role Port)
USB Type-A x 1 pass thru (USB 3.2 Gen2)
External Power Source / Sink Connector
-
DP Over USB-C
Resolution up to 4096x2160p60
Support up to HBR3 rate and 4 lanes
Maximum support 600MHz pixel clock
-
USB Over USB-C
Built-in USB 2.0 (480 Mbps) storage
Built-in USB 3.2 Gen 1 (5Gbps) storage
Support USB 3.2 Gen 2 (10Gbps) with external
USB device
-
Power Delivery
Source 65W (20V/3.25A)
Sink 15W (5V/3A)
Support EPR (Extended Power Range) function
up to 240W Source and Sink with external
power unit (Sold separately)
-
Electrical Test
Verify functionality of USB-C interface signals
(VBUS, CC1/2, SBU1/2, GND)
Cable flip (straight / flipped)
-
Operating System
Windows 11, 10, Linux and MacOS
-
Software
Python API with sample code
Easy-to-use GUI
-
Power Input
+12 Vdc (AC/DC converter included)
-
Module Size
130mm x130mm x30mm
Manufacturer
UNIGRAF
